Flex Segment #3

New issue
Open
opened 2025-02-11 04:35:58 +00:00 by Cheese-water · 0 comments
Cheese-water commented 2025-02-11 04:35:58 +00:00
Owner
Copy link

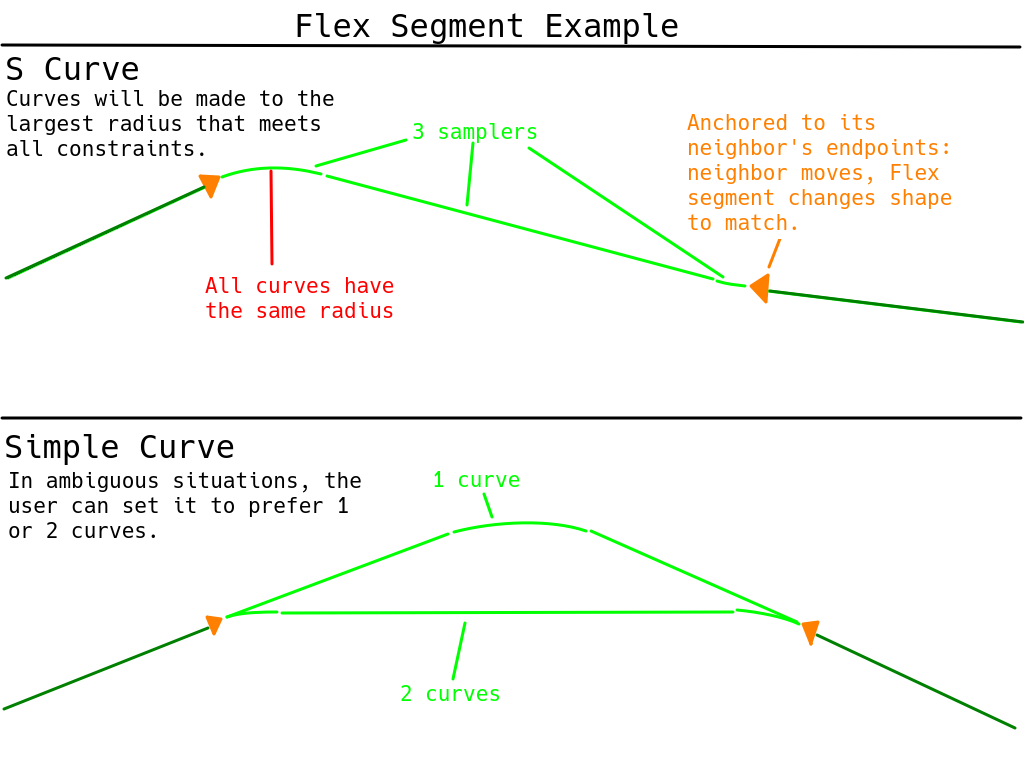

Create a type of RailSegment which is auto-generated from endpoint transforms, min and max curvature constraints, and preference for 1 or 2 curves and consists of 1 subsegment with 3 AlignmentSamplers and 3 ElevationSamplers, and 2 endpoints.

Rather than having user-defined length and curvature, they have user-defined constraints for procedurally defined length and curvature.

Constraints include:

  • Endpoint transforms
  • Min and max curve radius
  • Preferred number of curves
  • All set separately for alignment and elevation
Create a type of `RailSegment` which is auto-generated from endpoint transforms, min and max curvature constraints, and preference for 1 or 2 curves and consists of 1 subsegment with 3 `AlignmentSampler`s and 3 `ElevationSampler`s, and 2 endpoints. Rather than having user-defined length and curvature, they have user-defined constraints for procedurally defined length and curvature. Constraints include: - Endpoint transforms - Min and max curve radius - Preferred number of curves - All set separately for alignment and elevation
97 KiB
Cheese-water added the
enhancement
 label 2025-02-11 04:35:58 +00:00
Cheese-water added a new dependency 2025-02-11 04:39:33 +00:00
#2 Geometry Submodule
